Double shaft mixer
| specification | WZL-0.3 | WZL-0.5 | WZL-1 | WZL-2 | WZL-3 | WZL-4 | WZL-6 | WZL-10 | WZL-15 | WZL-20 |
| working capacity(m³) | 0.18 | 0.3 | 0.6 | 1.2 | 1.8 | 2.4 | 3.6 | 6 | 9 | 12 |
| working capacity(kg) | 200 | 300 | 600 | 1200 | 1800 | 2500 | 3600 | 6000 | 9000 | 12000 |
| speed(RPM) | 60 | 60 | 53 | 43 | 43 | 35 | 35 | 29 | 22 | 18 |
| power(KW) | 5.5 | 7.5 | 11 | 22 | 30 | 37 | 44 | 60 | 90 | 150 |
| weight | 650 | 900 | 1300 | 2300 | 2800 | 3400 | 5000 | 6000 | 8500 | 12000 |
| length | 1600 | 1800 | 2400 | 2800 | 3200 | 3400 | 3700 | 4000 | 4600 | 5200 |
| width | 850 | 1000 | 1400 | 1700 | 1950 | 2000 | 2200 | 2600 | 3100 | 3500 |
| height | 950 | 1100 | 1800 | 1950 | 2000 | 2000 | 2300 | 2600 | 2800 | 3000 |
High efficiency mixing unit
1) LDH type: Main shaft agitators: plow/ plough agitator together with high speed chopper.

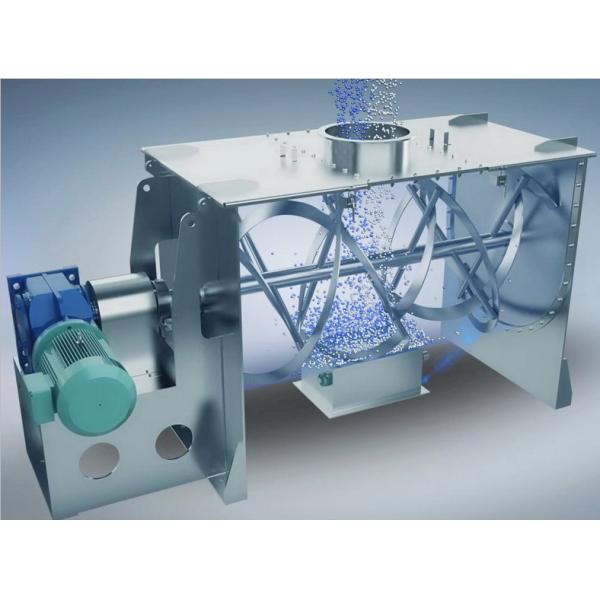

2) LHY type: The main ribbon agitator could be: inner and outer ribbon, paddle and ribbon, disconnected ribbon, and shaver-shaped agitator.

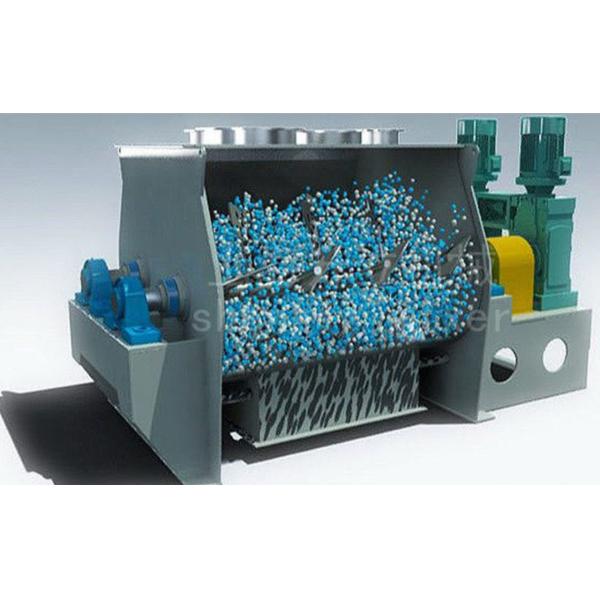

3) WZL type: Double shaft paddle agitator coube be: two shafts blade, the special structure of paddle stirrers will cause materials have sudden zero gravity so as to satisfy even mixture of most materials with different physical properties
Powerful auxiliary components
To realize the technicla of drying, cooling and keeping warm, the mixer can be added a jacket structure out of the tank. Hot water or steam or industrial oil can circulate int the jacket. Liquid filling system can be installed at the top cover, the different material of the atomized spray nozzle can realize the injecting of acid or alkali liquid, or water.
The tank and the agitator can be coated with other material like PE, PTFE, CARBIDE, etc. to realize the resistance of wear-out, acid/alkali, or explosion etc.
batch powder mixer, used in powder production line
C1: using crane to hang jumbo bag material and feeding the mixer
C2: mufti-level platform, manual undo the bag, mixing and packing with a bulk bag packer.
C3: simple mixer frame, feed the mixer manually with the help of a folk lift.
C 4: using manual feeding platform, after mixing, screw conveyor send the material to the storage silo, a packer under it.
C5: load the material manually on the ground,use vacuum feed to transfer material into mixer, after mixing, pack with a bulk-bag packer.
C6: multi-stage vacuum feeder, store it after mixing, then packing.
C7: multi-level operation platform, elevator sending to material silo, mixing, storage, and then packing. Tower structure.
C 8: bulket elevator feeding, mixing, storage, and packing.
C9: vacuum feeding, mixing, storage, packing.
C10:Manual feeding, mixing, storage, packing
